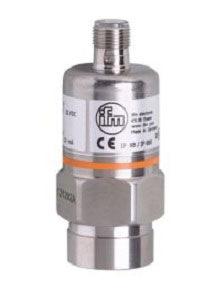

Product characteristics |
|---|
| Output signal | analogue signal |
| Measuring range | | 0…1 bar | 0…1000 mbar | 0…14.5 psi | 0…100 kPa |
|
| Process connection | threaded connection G 1/4 internal thread |
Application |
|---|
| Special feature | Gold-plated contacts |
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature [°C] | -25…90; (on request: -40…90 °C) |
| Min. bursting pressure | |
| Pressure rating | |
| Type of pressure | relative pressure |
Electrical data |
|---|
| Operating voltage [V] | 9.6…32 DC |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs |
|---|
| Number of inputs and outputs | Number of analogue outputs: 1 |
Outputs |
|---|
| Total number of outputs | 1 |
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4…20 |
| Max. load [Ω] | 720; (Ub = 24 V; (Ub – 9,6 V) / 20 mA) |
| Overload protection | yes |
Measuring/setting range |
|---|
| Measuring range | | 0…1 bar | 0…1000 mbar | 0…14.5 psi | 0…100 kPa |
|
Accuracy / deviations |
|---|
| Repeatability [% of the span] | < 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Long-term stability [% of the span] | < ± 0,05; (per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] | 0,1; (0…80 °C) |
| Temperature coefficient span [% of the span / 10 K] | 0,2; (0…80 °C) |
| Response times |
|---|
| Step response time analogue output [ms] | 3 |
| Operating conditions |
|---|
| Ambient temperature [°C] | -25…80 |
| Storage temperature [°C] | -40…100 |
| Protection | IP 65 |
| Tests / approvals |
|---|
| EMC | | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 30 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | radiation of interference | according to the automotive directive 2004/104/EC | | CISPR 25 | | | immunity | according to the automotive directive 2004/104/EC | | ISO 11452-2 HF radiated | 100 V/m | | ISO 7637-2 pulse | severity level 4 |
|
| Shock resistance | | DIN EN 60068-2-27 | 50 g (11 ms) | | DIN EN 61373 | category 3 |
|
| Vibration resistance | | DIN EN 60068-2-6 | 20 g (10…2000 Hz) | | DIN EN 61373 | category 2 |
|
| MTTF [years] | 506 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Railway applications | | DIN EN 50155 / IEC 60571 | Klasse T3, C1, S1 |
|
| Mechanical data |
|---|
| Weight [g] | 221.5 |
| Materials | stainless steel (1.4404 / 316L); FKM; PA; EPDM/X |
| Materials (wetted parts) | stainless steel (1.4305 / 303); ceramics; FKM |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection G 1/4 internal thread |
| Restrictor element integrated | no (can be retrofitted) |
| anzeigen-bedienelemente |
|---|
| Remarks |
|---|
| Pack quantity | 1 pcs. |
| Electrical connection |
|---|
| Connection | Connector: 1 x M12; Contacts: gold-plated |
