Product characteristics |
|---|
| Output signal | switching signal; analogue signal; IO-Link; (configurable) |
| Measuring range | | -1…10 bar | -14.5…145 psi | -100…1000 kPa | -0.1…1 MPa |
|
| Process connection | threaded connection G 1/4 internal thread |

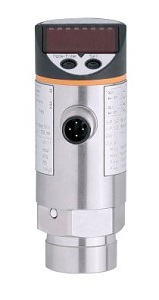

Application IFM PN2024 |
|---|
| Special feature | Gold-plated contacts |
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature [°C] | -25…80 |
| Min. bursting pressure | |
| Pressure rating | |
| Type of pressure | relative pressure |
Electrical data |
|---|
| Operating voltage [V] | 18…32 DC; (according to EN 50178 SELV/PELV) |
| Current consumption [mA] | < 35 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 0.3 |
| Integrated watchdog | yes |
Inputs / outputs IFM PN2024 |
|---|
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
Outputs |
|---|
| Total number of outputs | 2 |
| Output signal | switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | < 500 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4…20; (scalable 1:4) |
| Max. load [Ω] | (Ub – 10 V) / 20 mA |
| Analogue voltage output [V] | 0…10; (scalable 1:4) |
| Min. load resistance [Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range |
|---|
| Measuring range | | -1…10 bar | -14.5…145 psi | -100…1000 kPa | -0.1…1 MPa |
|
| Set point SP | | -0.88…10 bar | -12.8…145 psi | -0.088…1 MPa |
|
| Reset point rP | | -0.94…9.94 bar | -13.6…144.2 psi | -0.094…0.994 MPa |
|
| Analogue start point | | -1…7.26 bar | -14.6…105.2 psi | -0.1…0.726 MPa |
|
| Analogue end point | | 1.76…10 bar | 25.4…145 psi | 0.176…1 MPa |
|
| In steps of | | 0.02 bar | 0.29 psi | 0.002 MPa |
|
| Factory setting | | SP1 = 2.50 bar | rP1 = 2.30 bar | | SP2 = 7.50 bar | rP2 = 7.30 bar | | ASP = 0.00 bar | AEP = 10.00 bar |
|
Accuracy / deviations IFM PN2024 |
|---|
| Switch point accuracy [% of the span] | < ± 0,4; (Turn down 1:1) |
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation [% of the span] | < ± 0,1; (Turn down 1:1) |
| Long-term stability [% of the span] | < ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,1; (-25…80 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,2; (-25…80 °C) |
Response times |
|---|
| Response time [ms] | < 1.5 |
| Damping for the switching output dAP [s] | 0.01…4 |
| Damping for the analogue output dAA [s] | 0.01…4 |
| Max. response time analogue output [ms] | 3 |
Software / programming |
|---|
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span |
Interfaces IFM PN2024 |
|---|
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.0 |
| Profiles | no profile |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 1 |
| Process data binary | 2 |
| Min. process cycle time [ms] | 2.3 |
| Supported DeviceIDs | | Type of operation | DeviceID | | Default | 60 |
|
Operating conditions IFM PN2024 |
|---|
| Ambient temperature [°C] | -25…80 |
| Storage temperature [°C] | -40…100 |
| Protection | IP 65 |
Tests / approvals |
|---|
| EMC | | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-5 Surge | 0,5/1 kV | | EN 61000-4-6 HF conducted | 10 V |
|
| Shock resistance | | DIN IEC 68-2-27 | 50 g (11 ms) |
|
| Vibration resistance | | DIN IEC 68-2-6 | 20 g (10…2000 Hz) |
|
| MTTF [years] | 162.52 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data |
|---|
| Weight [g] | 262 |
| Materials | stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM; PTFE |
| Materials (wetted parts) | stainless steel (1.4305 / 303); ceramics; FKM |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection G 1/4 internal thread |
| Restrictor element integrated | no (can be retrofitted) |
Displays / operating elements |
|---|
| Display | | Display unit | 3 x LED, green | | switching status | 2 x LED, yellow | | function display | alphanumeric display, 4-digit | | measured values | alphanumeric display, 4-digit |
|
Remarks |
|---|
| Pack quantity | 1 pcs. |
| Electrical connection |
|---|
| Connection | Connector: 1 x M12; Contacts: gold-plated |
