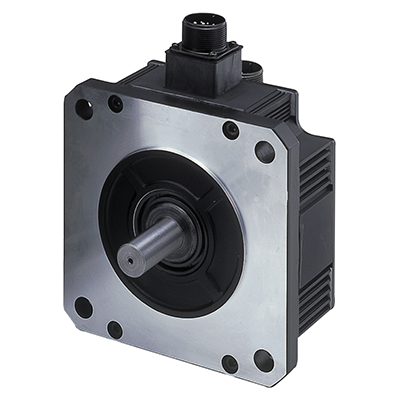

Servo Panasonic Minas MFME152G1C
Kami menjual Servo Panasonic Minas MFME152G1C berkualitas Original dan dijamin keasliannya. Panasonic adalah merk dagang terkemuka yang telah dipakai hampir di semua pabrik yang ada di Indonesia. Kami siap memenuhi kebutuhan Servo & Drive Panasonic untuk Anda dengan cepat dengan harga bersaing di seluruh Indonesia.
High performance, multi-functional and compact AC Servo Motors from Panasonic. Panasonic Seri Servo Minas MSMJ adalah Low Intertia line up dari Servo Panasonic A5 Family dengan berbagai macam fitur.
Panasonic Minas MFME152G1C Description
| Part Number | MFME152G1C |
| Product | Servo Motor |
| Details | Middle inertia, Connector type, IP67 |
| Product name | MINAS A5 Family Servo Motor |
| Features | 10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz |
Panasonic Minas MFME152G1C Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MFME152G1C |
| Details | Middle inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MFME Series |
| Type | Middle inertia |
| Protection class | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 176 mm sq. |
| Flange sq. dimension (Unit:mm) | 176 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 2.3 |
| Voltage specifications | 200 V |
| Rated output | 1500 W |
| Rated current (A (rms)) | 7.5 |
| Holding brake | without |
| Mass (kg) | 9.5 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 7.16 |
| Momentary Max. peak torque (N ⋅ m) | 21.5 |
| Max. current (A (o-p)) | 32 |
| Regenerative brake frequency (times/min) | Without option :100 With option :No limit Option (External regenerative resistor) Part No. : DV0P4284 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 2000 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 18.2 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 980 |
| During assembly: Thrust load A-direction (N) | 588 |
| During assembly: Thrust load B-direction (N) | 686 |
| During operation: Radial load P-direction (N) | 490 |
| During operation: Thrust load A, B-direction (N) | 196 |
| About permissible load | For details, refer to the [Motor Specification Description] “Permissible Load at Output Shaft”. |
Minas A5 MFME Part Number
Panasonic AC SERVOS & MOTORS
Panasonic proudly offers to our customers highly dynamic servo drives with state-of-the-art technology, with a large power range (50W – 15KW) combined with a light-weight and compact design. Innovative functions work to suppress resonance frequencies and vibrations.
