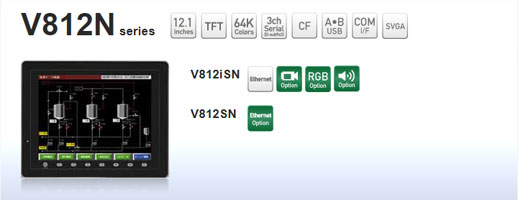

Jual HMI V812iSN Hakko Monitouch V8
Kami PT. ADINATA JAYA TEKNIK menjual HMI V812iSN Hakko Monitouch V8
Hakko HMI V812iSN General Specifications
| V812xSN | V812xSDN | ||
|---|---|---|---|
| V812iSN Power supply | Rated voltage | 100~240V AC | 24V DC |
| Permissible range of voltage | 100~240V AC±10% | 24V DC±10% | |
| Permissible momentary power failure | Within 20ms | Within 1ms | |
| Demand (maximum rating) | 70VA or less | 30W or less | |
| Inrush current | 20A, 10ms (100V AC) | 30A, 1ms | |
| 40A, 10ms (200V AC) | |||
| Insulation resistance | 500V DC, 10MΩ or more | ||
| V812iSN Physical environment | Operation ambient temperature | 0°C ~ +50°C | |
| Storage ambient temperature | -10°C ~ +60°C | ||
| Operation ambient humidity | 85%RH or less (without dew condensation, Max. wet bulb temperature: 39°C or lower) *1 | ||
| Resistance to solvent | No attachment of cutting oil or organic solvent | ||
| Atmosphere | Not exposed to corrosive gas or conductive dust | ||
| Operation altitude | 2,000 meter or lower | ||
| Contamination level *2 | Level 2 | ||
| V812iSN Mechanical | Resistance to oscillation | Vibration frequency: 10–150Hz, acceleration: 9.8m/s2(1.0G) pulsating width: 0.075mm, X,Y,Z: 3 directions 1 hour each way | |
| Resistance to shock | Pulse shape: half-sine, peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, six times each way | ||
| V812iSN Electric | Noise proof | 1500Vp-p (pulse width 1 s, pulse rise time : 1ns) | |
| Static discharge | Complies with IEC61000-4-2, contact: 6kV, air: 8kV | ||
| V812iSN Installation conditions | Grounding | Grounding resistance : Less than 100 Ω, FG/SG separation | |
| Structure | Protect structure: Front panel: Compatible with IP65 (when water-proof gasket is used.) Rear cover: Compatible with IP20 Form: Single unit Installation method: Panel mounting | ||
| Cooling system | Natural air cooling | ||
| Weight | Approx.2.9kg | ||
| Dimensions W×H×D(mm) | 326.4×259.6×69.0 | ||
| Panel cutout (mm) | 313.0×246.2 (+0.5/-0) | ||
| Case color | Gray | ||
| Material | PC/ABS | ||
- *1 Keep wet bulb temperature under 39 to avoid an accident.
- *2 Contamination level is an index that shows the incidence rate of conductive substance. At Level 2, only nonconductive substance is produced, but a temporary conductive state may occur due to dew concentration.
HMI Hakko V812iSN Performance Specifications
| V812iSN Display specifications | Screen memory | 12.5MB |
|---|---|---|
| Display device | TFT color LCD | |
| Resolution W:H(dots) | 800×600 | |
| Display size | 12.1 inches | |
| Colors | 65,536 colors (without blinks)/ 32,768 colors (with blinks) | |
| Backlight | LED | |
| Backlight Auto OFF | Lit in normal (Set by the user) | |
| Power lamp | Lit in normal condition, blinks in alarm condition such as blowout of backlight bulbs | |
| Contrast adjustment | Fixed | |
| Brilliance control | 3 levels (Adjusted to 128 steps by macro command) | |
| V812iSN Number of characters | 1/4 size | 100 columns × 75 lines |
| 1-byte | 100 columns × 37 lines | |
| 2-byte | 50 columns × 37 lines | |
| Enlargement of characters | X: 1~8 times Y: 1~8 times | |
| V812iSN Touch switch | Switch resolution | Analog: 1,024×1,024 Matrix: 50×30 |
| Mechanical life | 1 million times or more | |
| Surface treatment | Hard coating, Non glare finish 5% | |
| Function switch | Number of function switches | 8 switches |
| V812iSN External interface | D-Sub 9 pin (CN1) | RS-232C, RS-422/485, Asynchronous type, Data length : 7,8 bits, Parity : even, odd, none, Stop bit : 1,2 bits, Baud rate : 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 *3bps |
| Modular 8 pin (MJ1/ MJ2) | RS-232C, RS-422/485 (two-wire system), Asynchronous type, Data length : 7,8 bits, Parity : even, odd, none, Stop bit : 1,2 bits, Baud rate : 4800, 9600, 19200, 38400, 57600, 76800, 115200bps | |
| CF card interface | Compatible with CompactFlashTM | |
| Ethernet | Complies with IEEE802.3 Baud rate: 10Mbps, 100Mbps Cable: 100Ω Unsealed twist pair, Category 5, Max length: 100m | |
| USB | Type A, Type B (Ver1.1) | |
| Clock & Back up memory | Battery | Coin-type lithium primary battery |
| Back up memory | SRAM 512KB | |
| Back up period | 5 years (Ambient temperature 25°C) | |
| Calendar accuracy | Gap±90 sec. per month (Ambient temperature 25°C) |
- *3 Only when connected with SIEMENS MPI
pesan sekarang!
Setiap kode tipe HMI Hakko memberikan informasi tentang spesifikasi dan fitur-fitur yang dimiliki oleh HMI tersebut. Penting untuk memahami kode tipe HMI Hakko untuk memilih HMI yang sesuai dengan kebutuhan aplikasi Anda. Sebagai distributor HMI Hakko terpercaya, kami menyediakan berbagai tipe HMI Hakko dengan dukungan teknis yang handal. Hubungi kami sekarang untuk mendapatkan informasi lebih lanjut tentang tipe-tipe HMI Hakko yang tersedia. Hubungi Kami Sekarang!
