Inverter Micno KE300A
Kami Jual Inverter Micno KE300A berkualitas Original dan dijamin keasliannya. Micno adalah merk dagang terkemuka yang telah dipakai hampir di semua pabrik yang ada di Indonesia. Kami siap memenuhi kebutuhan inverter Micno untuk Anda dengan cepat dengan harga bersaing di seluruh Indonesia.

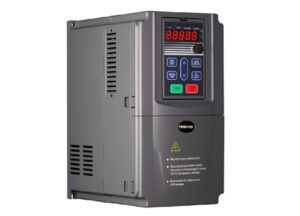

Inverter Micno KE300A Series Open Loop Vector Control Inverter
KE300A Series High Performance Open Loop Vector Control Inverter widely used for the asynchronous motor driving where better speed control and low-frequency torque are required . KE300A is built on TI’s powerful DSP-based motor control chip, with the adoption of the sensorless current vector control (SVC) and open-loop torque control (TC). KE300A enhances its reliability to meet the requirements of environment adaptability, customized and industrialized design with more optimized functions, more flexible applications and more stable performance.
Technical Specifications of KE300A Series Open Loop Vector Control inverter
| Item | Technical Index | Specification |
| Input | Input voltage | 1AC/3AC 220V±15%, 3AC 380V±15%, 3AC 660V±15% |
| Input frequency | 47~63Hz | |
| Output | Output voltage | O~rated input voltage |
| Output frequency | V/f control: 0~3000Hn | |
| Sensorless vector control: 0~300Hn | ||
| Control Features | Control mode | V/f control |
| Sensorless vector control | ||
| Torque control | ||
| Operation command mode | Keypad control | |
| Terminal control | ||
| Serial communication control | ||
| Frequency setting mode | Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, RID setting, etc. These frequency settings can be combined & switched in various modes. | |
| Overload capacity | G model: 150% 60s, 180% 10s, 200% 3s P model: 120% 60s, 150% 10s, 180% 3s | |
| Starting torque | 0.5HZ/150% (SVC); IHz/150% (V/f) | |
| Speed adjustment range | 1:100 (SVC); 1:50(V/f) | |
| Speed control precision | ±0.5% (SVC) | |
| Carrier frequency | 1.0—16.0kHz, automatically adjusted according to temperature and load characteristics | |
| Frequency accuracy | Digital setting: 0.01 Hz Analog setting: maximum frequency * 0.05% | |
| Torque boost | Automatically torque boost; manually torque boost: 0.1 30.0% | |
| V/f CURVE | Three types: linear, multiple points and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square) | |
| Acceleration/deceleration mode | Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s 〜3600.0s | |
| DC braking | DC braking when starting and stopping DC braking frequency: 0.0Hz—maximum frequency, braking time: 0.0s—100.0s | |
| Jog operation | Jog operation frequency: O.OHz—maximum frequency Jog acceleration/deceleration time: 0.1 s—3600.0s | |
| Simple PLC & multi-step speed operation | It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal. | |
| Built-in RID | Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.) | |
| Automatic voltage regulation | Keep output voltage constant automatically when input voltage fluctuating |
.jpg "2(1).jpg")
.jpg "3(1).jpg")
MICNO industrial AC speed drives adopt world-class vector control technology and they can be equipped with rich function expansion cards, flexible application, stable operation
Pesan Sekarang
Pesan sekarang untuk cepat memenuhi kebutuhan perusahaan anda. Kami jual Inverter Micno dan banyak Inverter Lainnya. Untuk informasi lebih lanjut silahkan hubungi Sales Marketing kami.
Tipe Inverter Micno Low Voltage Lainnya:
- KE300A Series Open Loop Vector Control Inverter
- AE300 Series Economic Type Open Loop Vector Control Inverter
- KE300X Series Mini Frequency Inverter
- KE300B Series Single Tube Converter
- KE600A Series Closed Loop Vector Control VFD
- KE600B Series Spindle Servo Drive
- KE610 Series Integrated Energy Saving Cabinet Inverter
- KE300T Series Electro Hydraulic Servo Inverter
- KE300F Open-loop Permanent Magnet Synchronous Drive
- KE300G Series Explosion-proof Movement Inverter
- TE300A Series Air Compressor Special Inverter
- KE300M Series IF Power Inverter
- KE330 Series Through Wall Mounted Inverter
- KE300-01 Series Wall-Mounted Bare Metal Inverter
